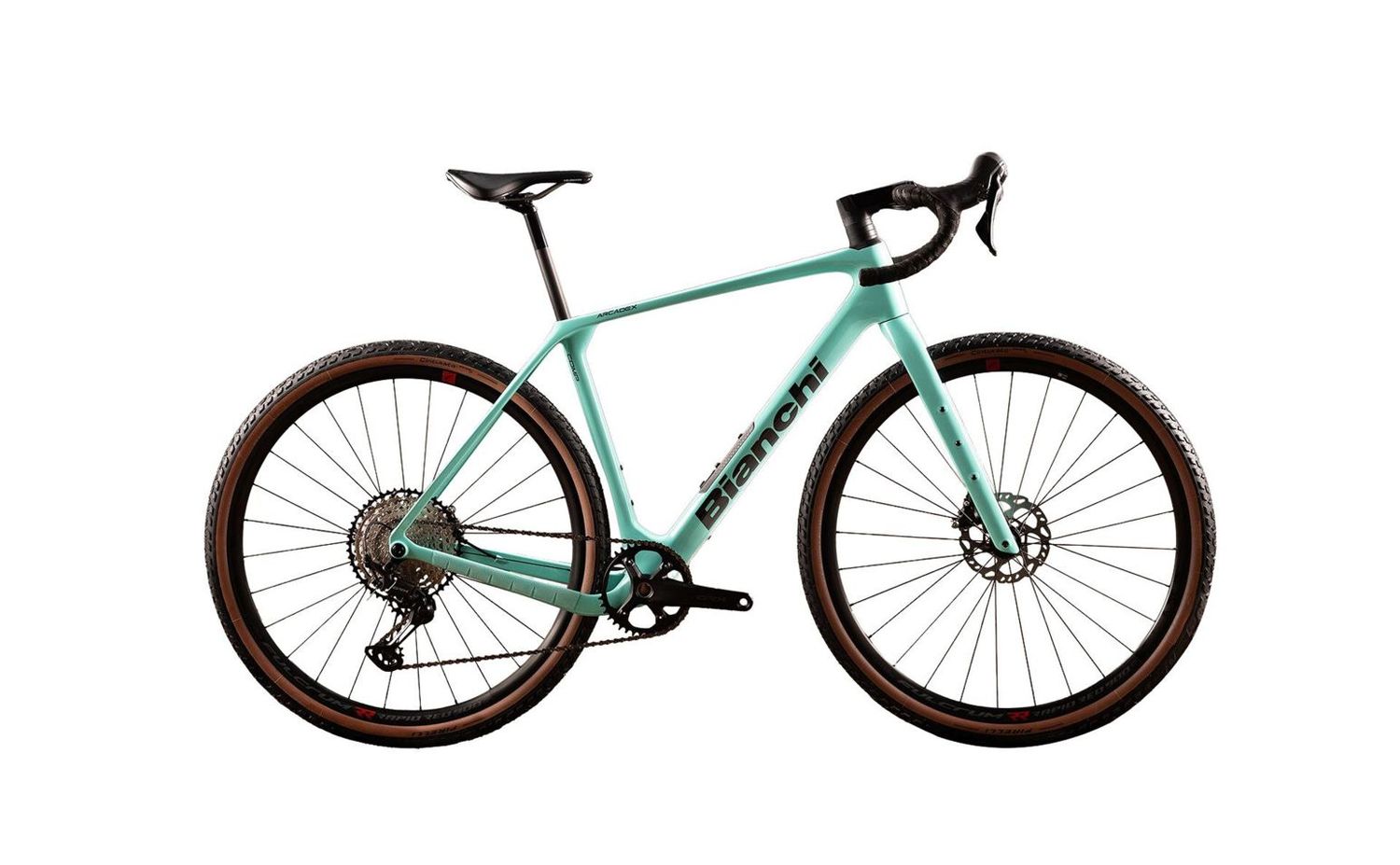

BIANCHI ARCADEX COMP APEX 1X12 CELESTE LARGE

FRAME

Bianchi Arcadex, Carbon, Flat mount disc,PressFit
86.5×41 mm, Thru axle, OLD: 142 mm,Rear
derailleur: Sram UDH hanger type, Tire
clearance: ETRTO 622-50 sizes XS-SM-MD-LG-XL

FORK

Bianchi Arcadex, Carbon, flat mount disc frake,
thru axle 12×100 mm

HEADSET

Acros for internal cable routing

SHIFTERS

Sram Apex AXS, D1

CRANKSET

Sram Apex D1 Wide, 40T Crank length: 170 mm
(XS-SM); 172.5 mm (MD-LG); 175 mm (XL)

REAR DERAILLEUR

Sram Apex Eagle D1, 12sp

BOTTOM BRACKET

Sram Press fit Road Wide 86.5×41

CHAIN

Sram SX Eagle, 12 sp

CASSETTE

Sram PG-1210 Eagle, for HG body, 11-13-15-17-
19-22-25-28-32-36-42-50T

BRAKES

Sram Apex, Hydraulic disc brake. Brake lever included in the shifter.

ROTOR

Sram Centerline, Center Lock, 160 mm (front&Rear)

STEM

Velomann AL6061, -7° rise Size: 80 mm (XS-SM);
90 mm (MD); 100 mm (LG); 110 mm (XL)

HANDLEBAR

Velomann Gravel, Aluminium, diameter 31.8
mm, reach 70 mm, drop 130 mm, flare 16 deg
Size: 400 mm (XS-SM); 420 mm (MD-LG); 440
mm (XL)

GRIPS

Bianchi Hexagon tape, 2.5 mm thickness, black

WHEELS

Velomann V24G, Aluminium rim, profile height 24
mm, 700x24c, 24h, Campagnolo body

TIRE

Pirelli Cinturato Gravel M, 700×45, 120 TPI

SEATPOST

Velomann Carbon, 15 mm offset, diameter 27.2
mm length: 300 mm (XS); 350 mm (SM-XL)
