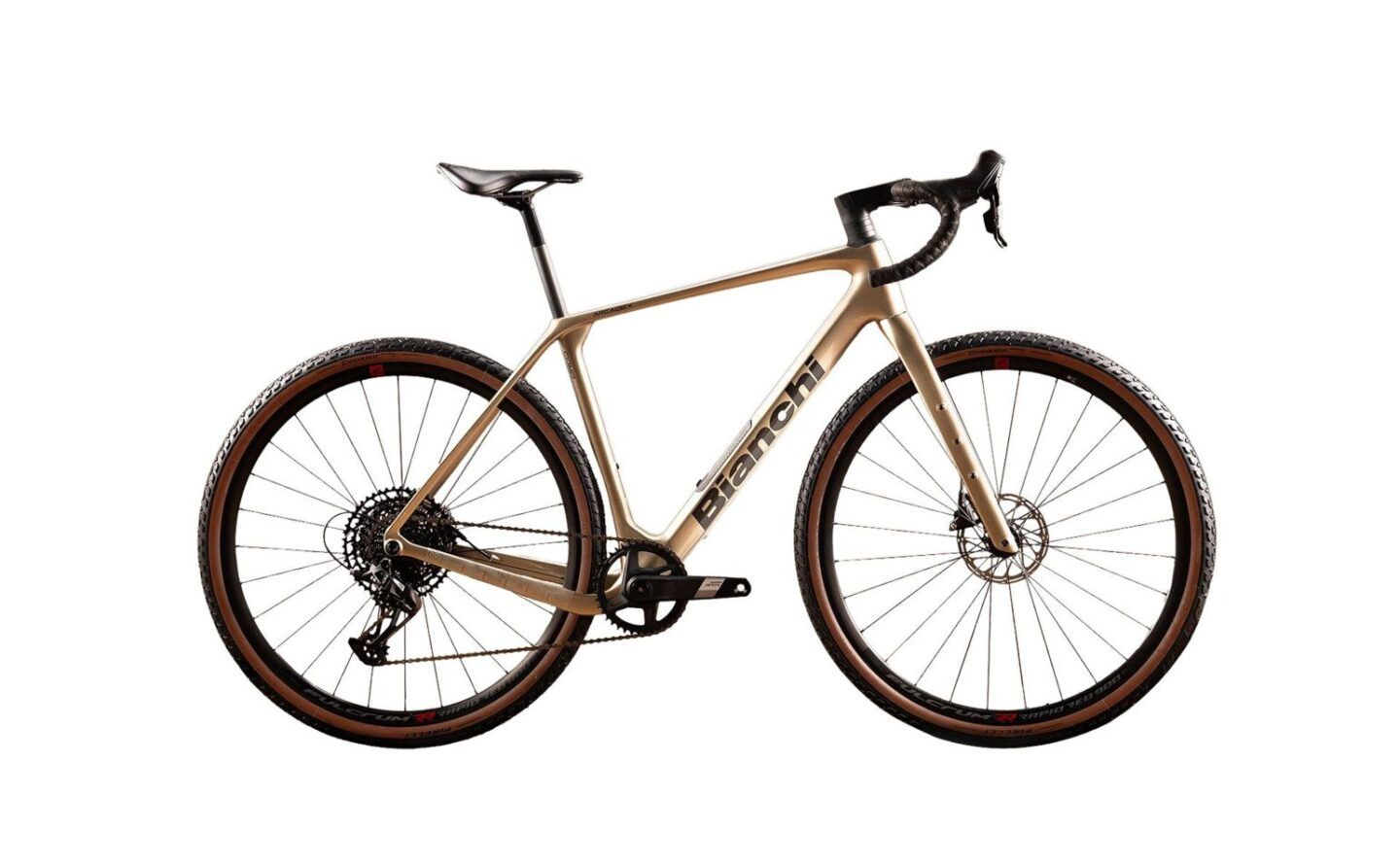

BIANCHI ARCADEX COMP GRX 610 1X12 METALLIC SAND SMALL

FORK

Bianchi Arcadex, Carbon, flat mount disc frake,
thru axle 12×100 mm

HEADSET

Acros for internal cable routing

SHIFTERS

Shimano GRX, shifter lever ST-RX610, caliper BRRX400

CRANKSET

Shimano GRX, FC-RX610, 40T Crank length: 170
mm (XS-SM); 172.5 mm (MD-LG); 175 mm (XL)

REAR DERAILLEUR

Shimano GRX, RD-RX822, 12sp

BOTTOM BRACKET

Shimano SM-BB72-41B, press fit type for road

CHAIN

Shimano 105, CN-M7100

CASSETTE

Shimano SLX, CS-M7100, 10-51T, 10-12-14-16-
18-21-24-28-33-39-45-51T

ROTORS

Shimano SM-RT70 Center Lock with Ice Tech, 160
mm (Front & Rear)

BRAKE LEVERS

Included in the shifter

STEM

Velomann AL6061, -7° rise Size: 80 mm (XS-SM);
90 mm (MD); 100 mm (LG); 110 mm (XL)

HANDLEBAR

Velomann Gravel, Aluminium, diameter 31.8
mm, reach 70 mm, drop 130 mm, flare 16 deg
Size: 400 mm (XS-SM); 420 mm (MD-LG); 440
mm (XL)

GRIPS

Bianchi Hexagon tape, 2.5 mm thickness, black

WHEELS

Velomann V24G, Aluminium rim, profile height 24
mm, 700x24c, 24h, Campagnolo body

TIRE

Pirelli Cinturato Gravel M, 700×45, 120 TPI

SEATPOST

Velomann Carbon, 15 mm offset, diameter 27.2
mm length: 300 mm (XS); 350 mm (SM-XL)

SADDLE

Velomann Mitora 149 H2, steel rails, length 250
mm, width 149 mm

SEATPOST CLAMP

Bianchi Custom
