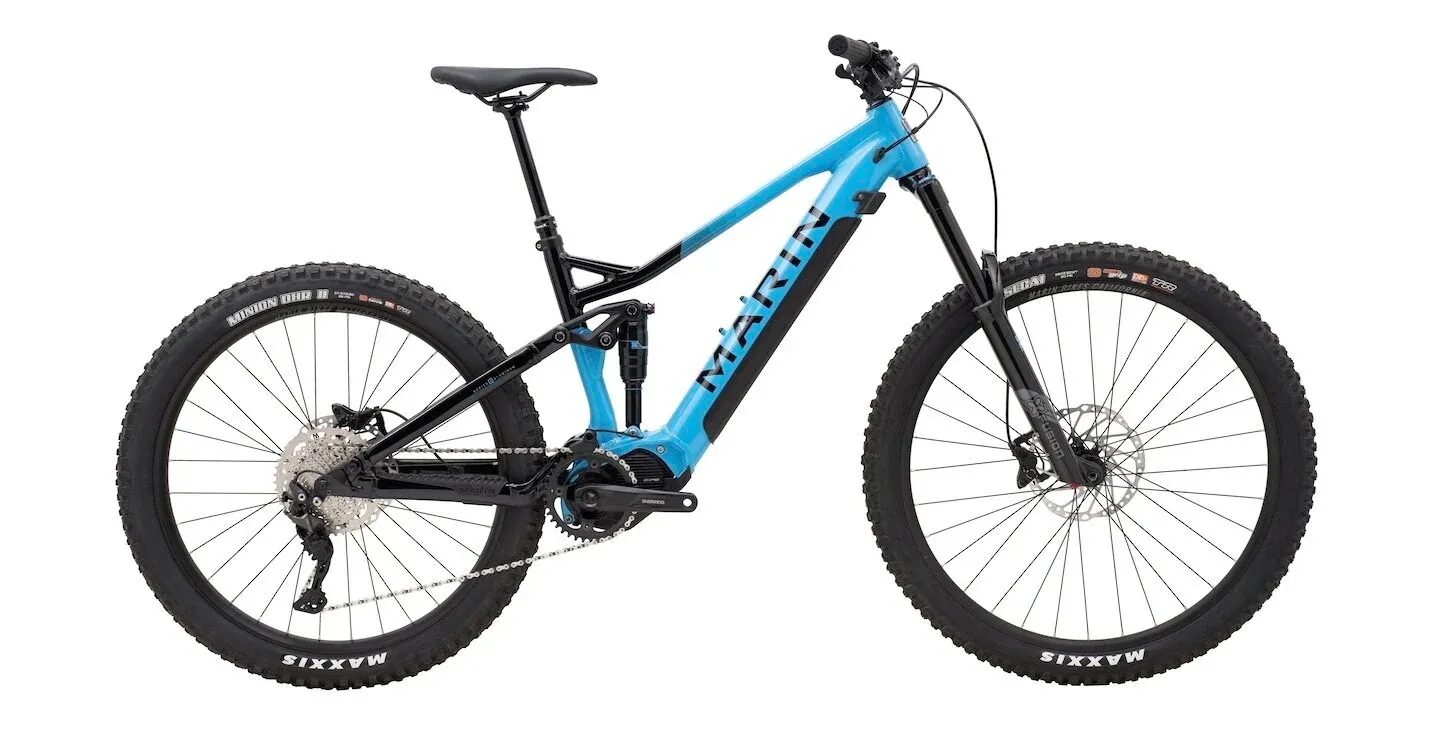

MARIN ALPINE TRAIL E 29 BLUE BLACK
C$4 999.99
Size
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
MARIN ALPINE TRAIL E 29 BLUE BLACK
Product Details
Marin’s electric assist mountain bikes are for riders who need a boost, either to cover more distance in a shorter amount of time or to go farther or higher than they might be able to accomplish on their own. Designed from the ground up around durable Shimano motor and battery units, the 2023 Marin electric mountain bike lineup is our most capable to date.
SPECIFICATIONS
APP
Shimano E-Tube Project and E-Tube Ride
RANGE
15-43 miles/25-70km
DISPLAY
SC-E600 Display
SWITCH
SW-EN600L Left Hand Switch for Assist Mode Change
BATTERY
BT-EN805-L, Internal 504Wh
MOTOR
Shimano EP6, 250 W, 85Nm
FORK
X-Fusion Trace 36 RC, 160mm Travel, 29", 110x15mm Bolt-On Axle, 44mm Offset
FRAME
Series 4 Alloy, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
REAR SUSPENSION
X-Fusion 02 PRO RXC, Compression and Rebound Adjustment, Custom Tune, 205x65 Trunnion Upper Mount, 25xM8 Lower Mount
RIM
Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
HUB REAR
Shimano HB-MT400B, 148x12mm, Centerlock, Standard Freehub Body
HUB FRONT
Shimano MT-410B, 110x15mm, Centerlock Disc, 32H
SPOKES
14g Black Stainless Steel
TIRES
Front: Vee Tire Co Attack HPL, 29x2.5", Top 40 Tubeless Compatible Rear: Vee Tire Co Crown Gem, 27.5x2.8”, Tackee Compound, Tubeless Compatible
SHIFT LEVER
Shimano Deore, 10-Speed, I-Spec EV
CRANKSET
Shimano EM600, 160mm Length
CHAIN
KMC X-10E, Silver
CASSETTE
Shimano Deore 10-speed 11-46T
RAKES FRONT
Shimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor
BRAKES REAR
Shimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor w/ Speed Sensor
BRAKE LEVERS
Shimano MT4100, I-Spec EV Compatible
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEM
Marin 3D Forged Alloy, 35mm
GRIPS
Marin Grizzly Lock-On
HEADSET
FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST
TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm
SADDLE
Marin eMTB
PEDALS
Marin MTB Plastic
EXTRAS
Shimano Battery Charger EC-E6002 Shimano CS-EM800 Chain Guide
