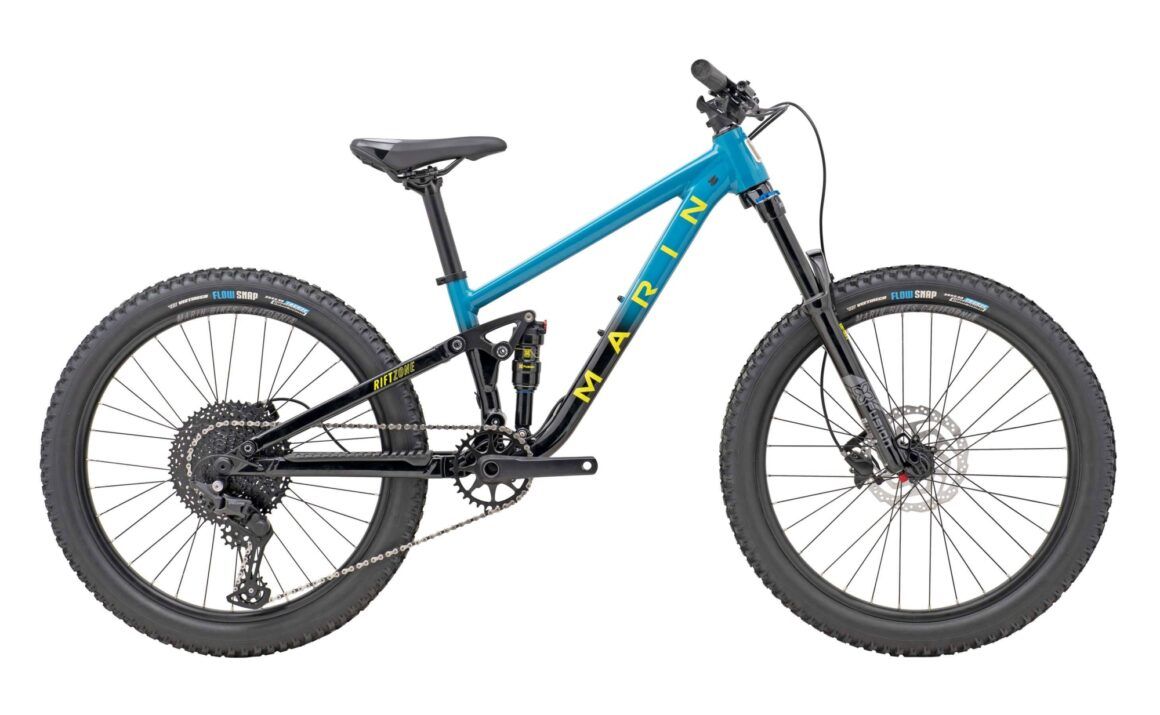

MARIN RIFT ZONE JR 24 TEAL BLACK

Specifications

• Frame

  Series 3 6061 Aluminum, 24” Wheels (fits up to 26"), 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

• Front Suspension

  X-Fusion Velvet RLC 26", 130mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle

• Rear Suspension

  X-Fusion O2 Pro R, 190x45mm, Custom Tune, M8x25mm Hardware

• Rims

  Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific

• Hub, Rear

  Forged Alloy, 141mm, Quad Sealed Bearings, Centerlock Disc, 32H

• Hub, Front

  Shimano HB-TC500, 100x15mm, Centerlock, 32H

• Spoke, Nipples

  14g Stainless Steel

• Tires

  Vee Tire Co., Flow Snap 24x2.4", Tackee Compound, Wire Bead

• Derailleur, Rear

  Shimano Deore, 11-Speed, SGS

• Derailleur, Front

  -

• Shift Lever

  Shimano Deore, 11-Speed, SL-5100R

• Crankset

  Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, Direct Mount Type

• Bottom Bracket

  External Sealed Cartridge Bearings

• Chain

  KMC X-11 Silver and Black

• Cassette

  SunRace, 11-Speed, 11-51T, ED Black

• Brake, Front

  Tektro HD-M280 Hydraulic, 180mm Rotor

• Brake, Rear

  Tektro HD-M280 Hydraulic, 160mm Rotor

• Brake Levers

  Tektro HD-M280

• Handlebar

  Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm Rise, 720mm Width, 4º Up, 9º Back

• Stem

  Marin 3D Forged Alloy, 35mm

• Grips

  Marin Dual Density

• Headset

  FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

• Seatpost

  Marin Alloy, 30.9mm

• Saddle

  Marin Speed Concept
