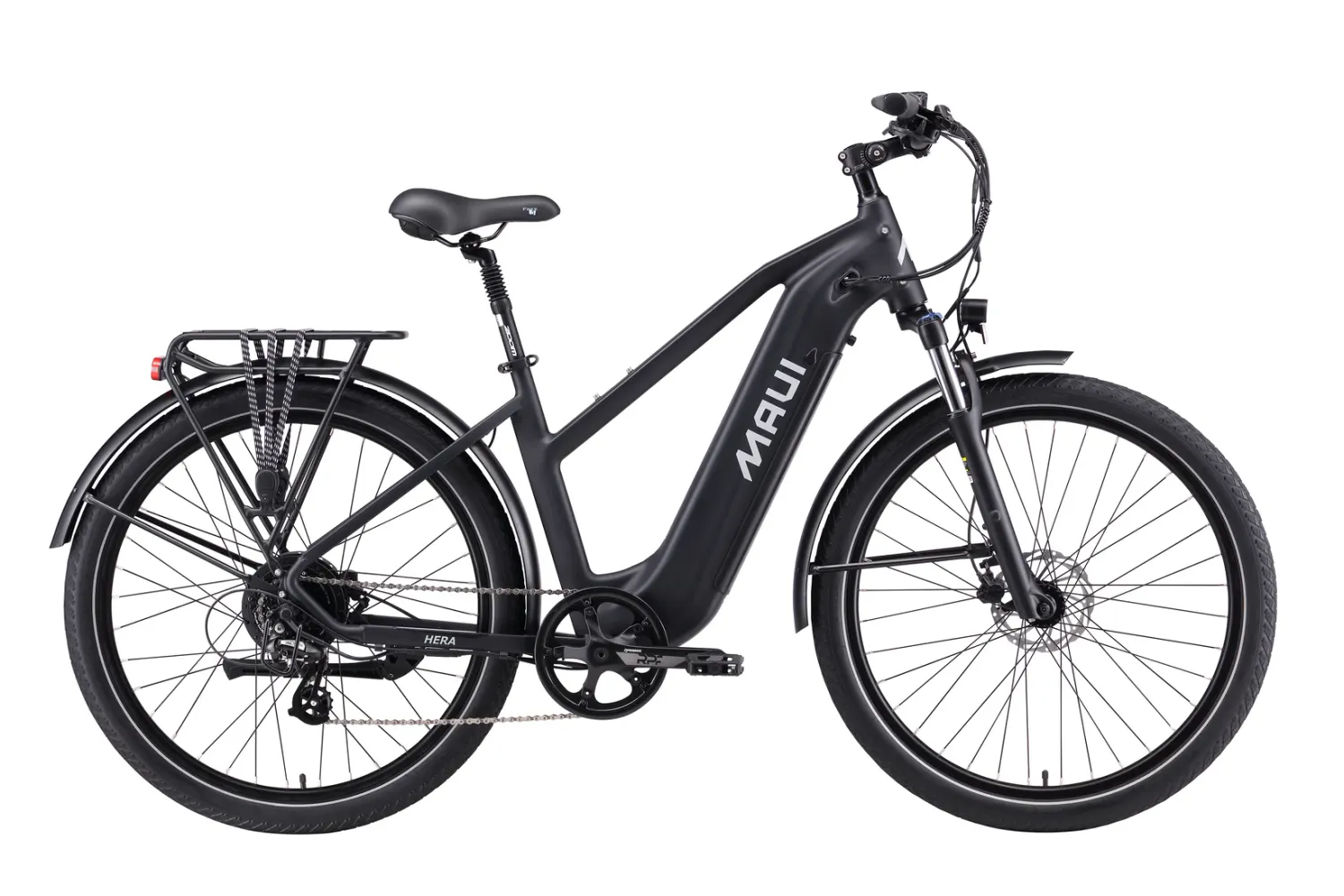

MAUI HERA FAT 500W 15Ah 720Wh 26

Think of the HERA as the Bronte's powerful big brother. Same stunning design DNA, same advanced technology, but with an XL frame engineered for riders who need extra space without com- promise. This premium e-bike delivers everything you expect from top-tier cycling: vibrant color display, ergonomic grips, robust 2.4" tires, durable metal fenders, and integrated rear rack. The game-changer? Built-in turn signals for ultimate safety and style.

FRAME

Alloy 27.5" frame with smooth welding. Integrated rear rack, fender mounts, Electronic Access Port. Removable battery with security lock.

FORK

Alloy suspension fork, with hydraulic lock

BIKE WEIGHT

29kg

WEIGHT CAPACITY

135kg

SHIFTERS

SHIMANO 8-speed rapidfire

CRANK SET

PROWHEEL, 46T

CHAIN

KMC Z7

REAR DERAILLEUR

SHIMANO Altus 8-speed

CASSETTE

SHIMANO 8-speed 12-32T

HANDLEBAR

Alloy bird type bar

GRIPS

Non-slip, shock-absorbing with Alloy ring

STEM

Alloy stem

SEATPOST

Alloy 27.2mm with quick release (350mm)

BRAKE

TEKTRO Hydraulic disc brake

ROTORS

160mm

TIRES

KENDA 26*4.0″

RIMS

CDC alloy, 27.5”1.513G36, alloy W: 40mm, H: 17.5mm F/R

MOTOR

BAFANG, RM G020.500.DC, 48V/500W

CONTROLLER

48V/500W/18A

BATTERY TYPE

SAMSUNG, 48V, 15Ah, Lithium, 5000mAh

BATTERY CAPACITY

5000 mAh

RANGE

Up to 130km subject to ambient temperature, rider weight and ride style

POWER ASSIST

5 Levels of power assisted pedaling

THROTTLE

KAHUA, EA10, thumb throttle 36V

BATTERY CHARGER

48V Smart charger, LED status, with CE certificate

INCLUDED ACCESSORIES

• Display
• Front & Rear LED Lights
• Front & Rear Fenders
• Rear Integrated Cargo Rack
• Kickstand
• Alloy pedals
