ORBEA TERRA H45 1X CUES
C$2 999.99
Color
Size
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

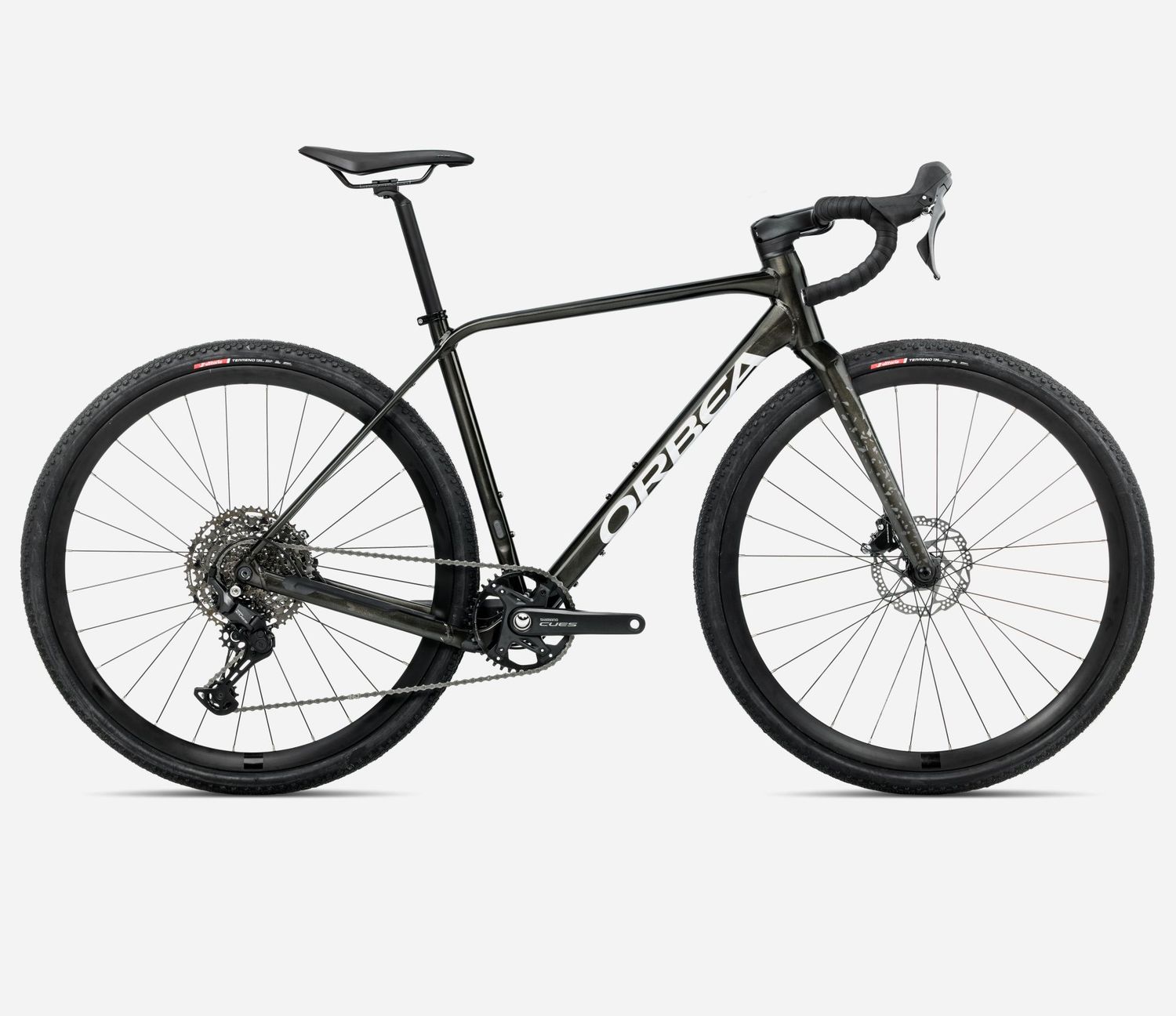

ORBEA TERRA H45 1X CUES
Product Details
*image for stone blue copper gloss is used for color and shows a slightly different model
-
TIRE CLEARANCE
Terra can be mounted with 700c x 45 tires for speed and efficiency on dirt roads, or with 650b x 50 treads for extreme durability and high-volume comfort if you need a bit more traction. -
DRIVETRAIN COMPATIBILITY
Designing our frame from the ground up gave us the opportunity to tackle a problem which exist in many gravel frames. Namely giving a range of drivetrain options without compromising tire clearance. -
LOCKR
Our Carbon frame offers a storage area inside the downtube, hidden behind the water bottle cage, where there is space for the tube, pump or CO2 cartridge, as well as a selection of tools.
SPECS
FRAME
Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system
FORK
Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
STEERER TUBE
FSA 1-1/2" Integrated Aluminium Cup
CRANKSET
Shimano Cues U6040 40t
SHIFTERS
Shimano U6030
CASSETTE
Shimano CS-LG400 11-50t 11-Speed
REAR DERAILLEUR
Shimano Cues U6000 GS Shadow
CHAIN
Shimano LG500
HANDLEBAR
OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
STEM
OC Road Performance RP23, -5º
BRAKES
Shimano RS405 Hydraulic Disc
BRAKES CONFIGURATION
N/A
WHEELS
Alloy, Tubeless, 700c, 21c
TYRES
Vittoria Terreno T30 fine loose Gravel 700x40c
FRONT WHEEL AXLE
Orbea Thru Axle 12x100mm M12x2 P1 Solid
REAR WHEEL AXLE
Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
SEATPOST
SP 0.2 Carbon, 27.2mm, Setback 20
SADDLE
Fizik Terra Argo X7 Aluminium Rail 150mm
MUDGUARD
N/A
HANDLEBAR TAPE
Orbea Eva
