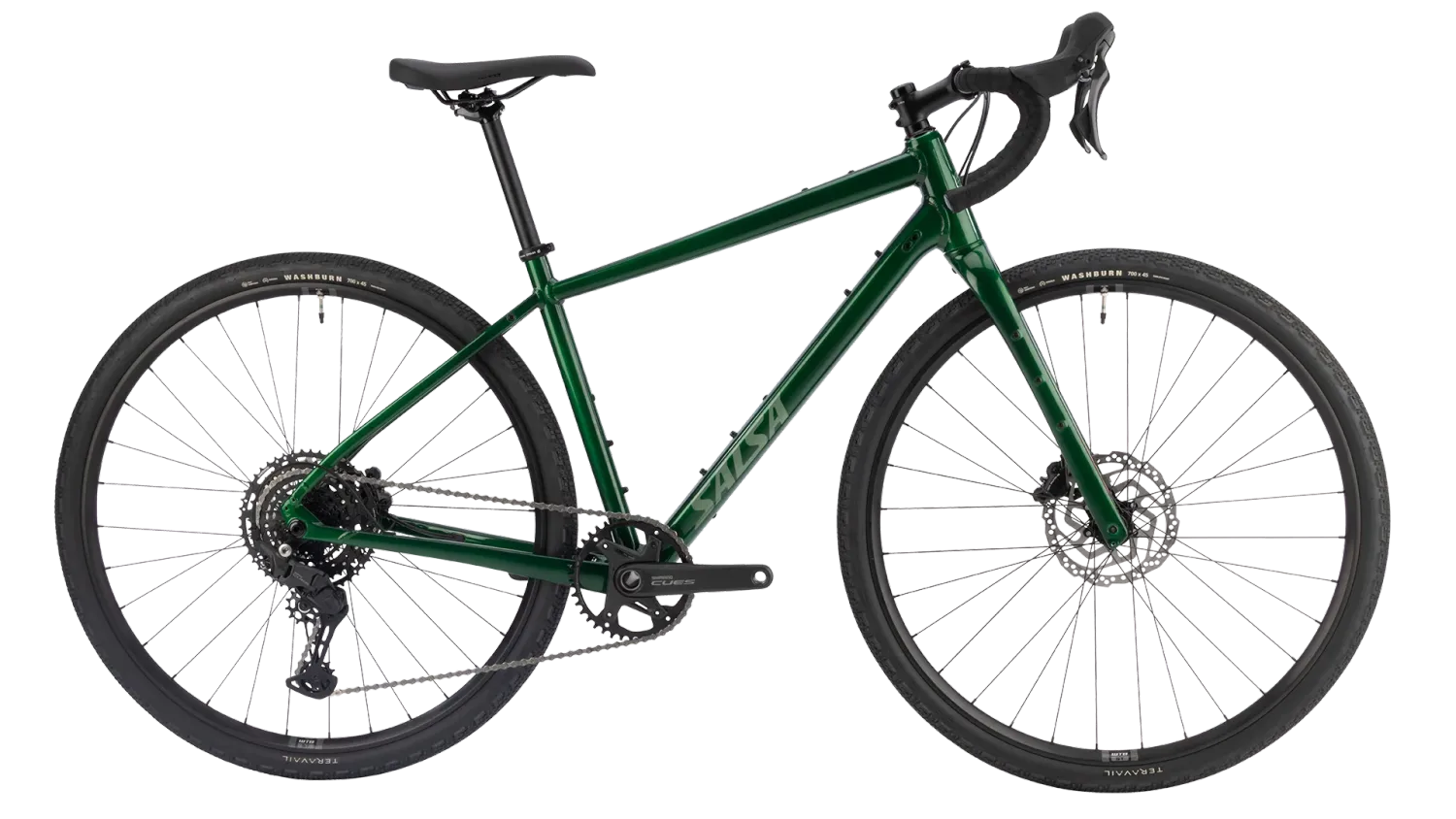

SALSA JOURNEYER CUES 1X10 700C PEAT MOSS

Journeyer is one of the most popular gravel bikes for a good reason. Its aluminum frame and carbon fork are an efficient and comfortable pedaling platform, while upright-oriented geometry means comfort and control on any gravel road. Journeyer is easy to set up for all your adventures with rack, accessory, and fender mounts. Shimano’s CUES 1x10 drivetrain delivers reliable shifting and braking, with plenty of gear range to get you through the ups and downs of any route. Start your gravel journey with Journeyer and you’ll see why it’s one of the most popular gravel bikes out there.

FRAME

Journeyer
COLOR

Peat Moss
FORK

Waxwing Carbon
HEADSET

FSA
SEATPOST

Salsa Guide, 12mm offset
STEM

TranzX
GRIPS/BAR TAPE

Cork tape
SADDLE

WTB Volt
HANDLEBAR

TranzX alloy
FRONT DERAILLEUR

N/A
REAR DERAILLEUR

Shimano CUES U6000
CASSETTE

Shimano LG300-10, 11–48t, 10-speed
CHAIN

Shimano LG500
CRANKSET

Shimano CUES U6030, 40t
SHIFTER

Shimano CUES U6000
BRAKE LEVERS

Shimano CUES 6030
BRAKE CALIPERS

Shimano CUES 6030
BOTTOM BRACKET

FSA MegaExo BSC
ROTORS

Shimano RT10 (6-bolt, 180mm front, 160mm rear)
FRONT TIRE

Teravail Washburn, 700c x 45mm, Durable casing, tubeless-ready
REAR TIRE

Teravail Washburn, 700c x 45mm, Durable casing, tubeless ready
FRONT HUB

Shimano TC500
REAR HUB

Shimano TC5000, HG
SPOKE

Straight-gauge, 14g
RIM

WTB ST i25
COMPLETE BIKE WEIGHT

24 lb 05 oz

Frame Specs

• Design Wheel/Tire Sizes - 700c x 38mm
• Alternate Wheel/Tire Sizes - 700c x 32–50mm; 650b x 47–50mm
• Frame Construction - Aluminum
• Fork Construction - Carbon
• Rigid Fork Length - 402mm length on axis
• Fork Offset - 50mm
• Rear Spacing - 142mm
• Rear Axle Size - 12 x 142mm thru-axle
• Rear Brake (Rotor) - Flat mount 140 frame standard (160mm max.), 20mm thickness, 27mm bolt length
• Front Brake (Rotor) - Flat mount 160 frame standard (180mm max.), 35mm thickness, 42mm bolt length
• Headset - Upper - IS41
• Headset - Lower - IS52
• Front Spacing - 100mm
• Front Axle Size - M12 x 120mm thru-axle, TP=1.5, TL=12mm
• Steerer Tube - 28.6mm / 1 1/8"
• Crown Race - 40mm
• Seatpost - 27.2mm
• Dropper Post Compatible - Yes (internal)
• Seatpost Clamp - 32.0mm
• Front Derailleur Clamp - 31.8mm OD, bottom pull
• Front Derailleur Type - 2x, bottom swing
• Derailluer Hanger - Salsa 959
• Bottom Bracket - 68mm BSA
• Crankset (Max Ring) - 1x crankset: 42t max.; 2x crankset: 48/33t max.
• Accessory Mounts - Downtube Accessory Mounts: One
  Rack Mounts Frame: Yes
  Rack Mounts Fork: Yes, low rider
• Bottle Mounts - 49cm frame: one in main triangle
  51–56cm frames: two in main triangle
  57–60cm frames: three in main triangle
  Fork bottle mounts: two
• Front Fender Mounts - Fender Mounts Fork: Yes
• Rear Fender Mounts - Fender Mounts Frame: Yes
